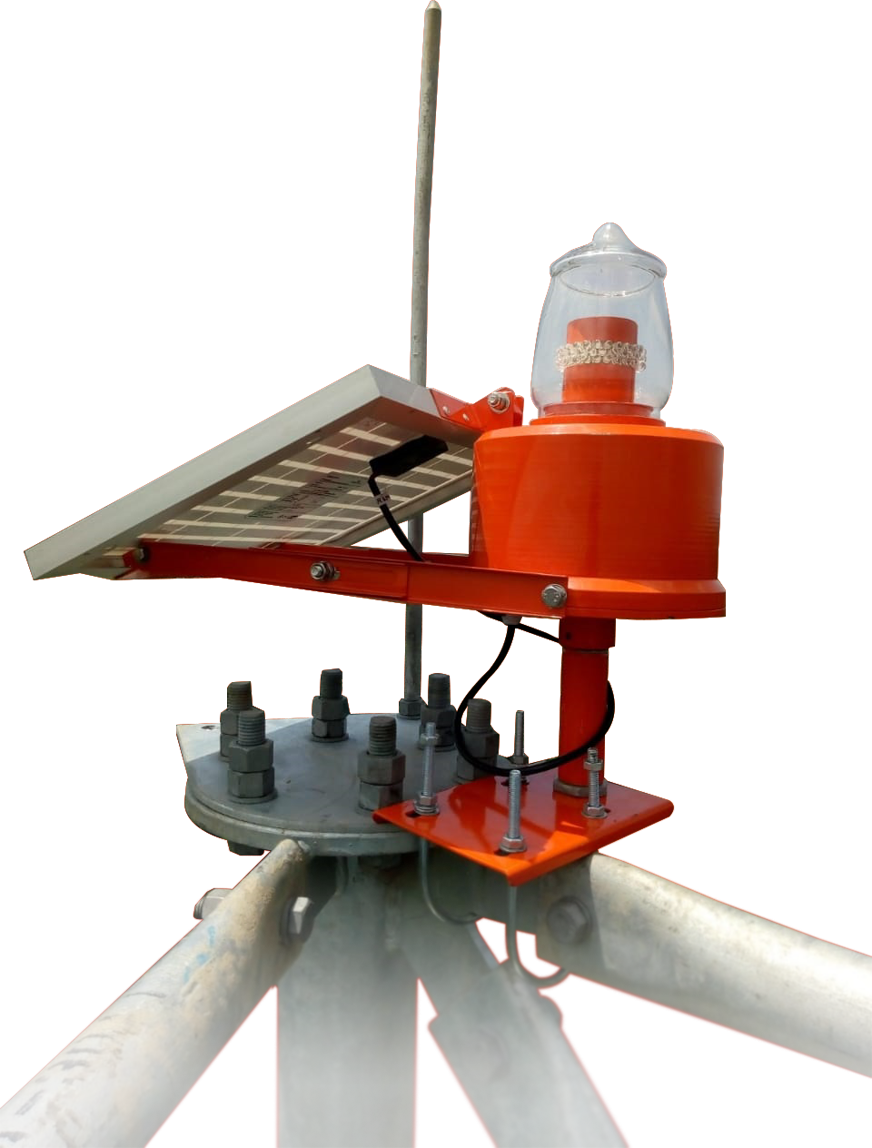

| Model No
|
: |
AV-04-S |
| Light intensity |
: |
Low intensity Type B (as per ICAO specs), 32CD |
| Flashing
|
: |
Fixed light, no flashing (as per ICAO norms)
|
| LED |
: |
Red color with inbuilt Lens for maximum efficiency, no secondary lenses
|
| Led Life |
: |
>50,000 hours |
| No. of LEDs |
: |
75 |
| No of parallel LED circuits
|
: |
15 |
| LED arrangement
|
: |
LED fixed on cylindrical PCB for uniform 360 deg light intensity
|
| Shell |
: |
Clear glass (No plastics which deteriorate with time) |
| Bird spike |
: |
Yes |
| ON/OFF control |
: |
Inbuilt LDR (Dusk to Dawn operation) |
| Power Consumption |
: |
2.0 W appox |
| Light base |
: |
Made from cast Aluminum with bright orange powder coating |
| Sealent |
: |
Silicon based |
| Environmental protection
|
: |
IP 65
|
| Battery Voltage |
: |
12V DC |
| Battery Type |
: |
Sealed Maintenance Free |
| Battery Capacity |
: |
7 AH, 12V |
| Solar Module (Power) |
: |
10 W |
| Charge Controller |
: |
|
| Overcharge Protection |
: |
Yes |
| Deep Discharge protection |
: |
Yes |
| Unit Ventilation |
: |
Natural draft |
| Operating Temp. Range |
: |
0 – 55 deg C ,Battery optimum operating temp 27 deg C |
| Mounting |
: |
Suitable for angular member towers without welding or drilling.
Option for Tubular towers also available
|
